AquaWave™ Classic :: shpressuretank

Compact RO System for residential use

AquaWave™ Classic

Flow rate: up to 280 liters or 75 gallon per day
Operating pressure: 1.4 - 4 bar / 20 - 60 psi

The AquaWave™ Classic is a compact point of use reverse osmosis drinking water system ideally suited for residential applications.

The 5-stage system is designed with of a 5 micron sediment pre-filter, a second stage GAC carbon filter, followed by our patented 2-in-1 design 1 micron GAC filter, designed for optimal RO membrane protection. The water is then purified through a high-grade RO membrane and finally passes through a post carbon filter for final polishing to ensure the best tasting water. The system comes complete with a modern stylish drinking water faucet.

The AquaWave Classic system comes with the following filters and reverse osmosis membrane:

Stage 1

PP1005-G

Removes dirt, rust and impurities down to 5 microns
Dual-gradient grooved surface for higher dirt capacity
100% virgin polypropylene - sustainable and recyclable

Stage 2

M01-GT-BW

Pure coconut shell activated carbon filter
Superior chlorine, taste, and odor removal
Designed with bacteria-resistant PET pads

Stage 3

M11-GT-WN

Patented 2-in-1 BLOCKFREETM carbon cartridge filter
World's first filter designed to safeguard RO membranes
Exceptional water filtration, excellent chlorine reduction

Stage 4

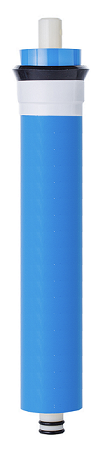

MTW-1812-75

Highly efficient Reverse Osmosis membrane filter
Removes harmful substances, chemicals, and heavy metals
Generates ample purified water for households & small offices

Stage 5

K02-GT-WW

100% pure coconut carbon post-filter
Final stage filter guarantees clean and safe water
Delivers refreshing, polished, and fresh drinking experience

Specifications

Dimensions	37 * 27 * 47 cm / 14.6 * 10.6 * 18.5 inch
Weight	9.5 kg / 21 lbs.
Tube Size	1/4”
Operating Pressure	1.4 ~ 4 bar \| 20 ~ 60 psi
Maximum Pump Pressure	6.9 bar \| 100 psi
Power Input	110V or 220V / 230V AC
Power Consumption	24V 1.2A 28W
Recommended Water Temperature	5 – 38°C / 41 – 100°F
Maximum TDS	1000 ppm
Maximum Hardness	291 ppm (17 grains/gallon)
Maximum Chlorine	1.0 ppm
Maximum Iron	0.3 ppm
Maximum Manganese	0.05 ppm
Maximum Turbidity	2 NTU
pH Level	6.0 – 8.5
