Anti-Legionella Solutions

Flow-Thru™
Inline Adaptors


Global Water Solutions’ Flow-Thru™ inline adaptors are ideally suited for continuous pressure systems where there is a risk of stagnant water in the tank. The Flow-Thru inline adaptor diverts the water through the tank while the water is running, eliminating the risk of stagnant water and reducing the risk of waterborne bacteria such as legionella. This constant flushing ensures the freshest water in the tank.

Flow-Thru inline adaptors are 1” full bore recirculation devices that offer superior flow rates compared to other 3/4” devices. Their unique design provides maximum circulation in the tank whilst assuring minimal pressure drop in the main pipe.


  • Patent pending Flow-Thru™ technology, ensuring recirculation in the tank for the freshest water
  • Reduces the risk of water-borne diseases like Legionnaires disease
  • Flexible installation orientation

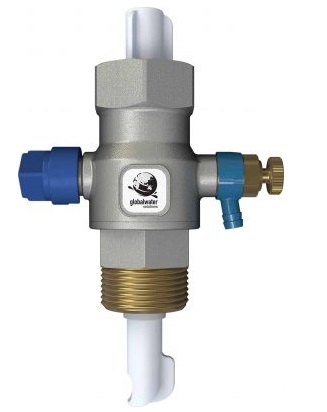

Flow-Thru™
Inline Adaptor Plus


  • Self-orientating design eliminates the risk of leaking or overtightened connections.
  • 1” Connection offering superior fresh water exchanges compared to other 3/4” designs
  • Reduces the risk of water-borne diseases
  • Includes the unique “auto alignment scoop” which guarantees the correct positioning of the Flow-Thru system

Model Connection Maximum pressure
IFP-100B 1" BSP 10 bar / 145 psi
IFP-100N 1" NPT 10 bar / 145 psi

Flow-Thru™
Inline Adaptor Standard


  • Multiple orientations for installation, it eliminates the risk of leaking or overtightened connections.
  • Prevents stagnant water on booster sets.

Model Connection Maximum pressure
IFA-100BSP 1" BSP 25 bar / 362 psi
IFA-100NPT 1" NPT 25 bar / 362 psi

Specifications


  • Connection: 1” BSP or NPT
  • Fitting material: 304 stainless steel

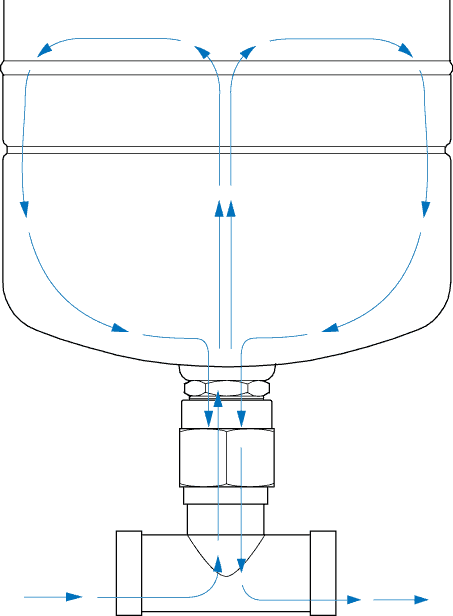

The Flow-Thru™ Principle


The Flow-Thru™ function diverts the water through the tank while the pump is running. The constant flushing activity assists in eliminating the risk of stagnant water and reducing the possibility of waterborne bacteria such as legionella.

Compatibility


  • PressureWave™ 2 to 35 liter inline tanks
  • Max™ 2 to 35 liter inline tanks*
  • UltraMax™ 8 and 24 liter inline tanks*
  • M-Inox™ 8 to 24 liter inline tanks
  • All-Weather™ 18 and 24 liter inline tanks

* Compatible with standard Flow-Thru Inline Adaptor only.
