Premium Quality

Filter Housings


  • 10" and 20" standard and jumbo housings
  • 100% virgin materials - polypropylene or acrylonitrile styrene (AS)
  • Available with a wide range of NPT or BSP connections
  • O-ring: EPDM
  • No chemicals added, ensuring housings are sterile and hygienic
  • No injection molding releasing agents used in manufacturing

Does your water source suffer from contaminants, sediment, or odors? GWS filter housings are the first step in solving your drinking water needs. Built with the highest quality virgin materials and reinforced to withstand the highest pressures, our filter housings can be used with a wide assortment of cartridges and media for applications in homes, restaurants, industry, and anywhere clean drinking water is a must.

Features & Benefits


  • Single recess top mounted O-ring design prevents pinching and leaks
  • Built-in pressure relief / air bleed button (optional)
  • No chemicals added, ensuring housings are sterile and hygienic
  • Supplied with cap mounting bolt kit
  • Single recess top mounted O-ring design prevents pinching and leaks
  • Housing cap with Pressure Relief Valve (PRV)
  • Optional 1” stainless steel connection feature
  • Single recess top mounted O-ring
  • Optional 1” stainless steel connection feature
  • PRV protection plate for protection during shipping

Product Certifications


NSF

USA

Downloads


Standard Filter Housings

Leaflet - Standard Filter Housings - English  Download

Leaflet - Standard Filter Housings - French  Download

Leaflet - Standard Filter Housings - Italian  Download

Leaflet - Standard Filter Housings - Spanish  Download

Leaflet - Standard Filter Housings - Portuguese  Download

Jumbo Filter Housings

Leaflet - Jumbo Filter Housings - English  Download

Leaflet - Jumbo Filter Housings - French  Download

Leaflet - Jumbo Filter Housings - Italian  Download

Leaflet - Jumbo Filter Housings - Spanish  Download

Leaflet - Jumbo Filter Housings - Portuguese  Download

Leaflet - Jumbo Filter Housings - German  Download

RO Membrane Housings

Leaflet - Purefer RO Membrane Housings - English  Download

Leaflet - Purefer RO Membrane Housings - French  Download

Leaflet - Purefer RO Membrane Housings - Italian  Download

Leaflet - Purefer RO Membrane Housings - Spanish  Download

Filter Housing Accessories

Leaflet - Filter Housing Accessories - English  Download

Leaflet - Filter Housing Accessories - French  Download

Leaflet - Filter Housing Accessories - Italian  Download

Leaflet - Filter Housing Accessories - Spanish  Download

Products
10" Standard Housings (9 7/8")


  • Compatible

  • BSP

  • NPT


Model NumberConnectionPRVFilter SizeCap DesignCap ColorSump ColorBox Qty
H06-2C-WW-RC1/4” CompatibleNo9-7/8″Round CapWhiteWhite12
H06-2C-WC-RC1/4” CompatibleNo9-7/8″Round CapWhiteClear12
H06-2C-WW-FC1/4” CompatibleNo9-7/8″Flat CapWhiteWhite12
H06-2C-WC-FC1/4” CompatibleNo9-7/8″Flat CapWhiteClear12
H06-3C-WW-FC3/8″ CompatibleNo9-7/8″Flat CapWhiteWhite12
H06-3C-WC-FC3/8″ CompatibleNo9-7/8″Flat CapWhiteClear12
Model NumberConnectionPRVFilter SizeCap DesignCap ColorSump ColorBox Qty
H06-4B-WW-RC1/2” BSPNo9-7/8″Round CapWhiteWhite12
H06-4B-WC-RC1/2” BSPNo9-7/8″Round CapWhiteClear12
H06V-4B-WW-RC1/2” BSPYes9-7/8″Round CapWhiteWhite12
H06V-4B-WC-RC1/2” BSPYes9-7/8″Round CapWhiteClear12
H06-6B-WW-RC3/4” BSPNo9-7/8″Round CapWhiteWhite12
H06-6B-WC-RC3/4” BSPNo9-7/8″Round CapWhiteClear12
H06V-6B-WW-RC3/4” BSPYes9-7/8″Round CapWhiteWhite12
H06V-6B-WC-RC3/4” BSPYes9-7/8″Round CapWhiteClear12
Model NumberConnectionPRVFilter SizeCap DesignCap ColorSump ColorBox Qty
H06-4N-WW-RC1/2” NPTNo9-7/8″Round CapWhiteWhite12
H06-4N-WC-RC1/2” NPTNo9-7/8″Round CapWhiteClear12
H06V-4N-WW-RC1/2” NPTYes9-7/8″Round CapWhiteWhite12
H06V-4N-WC-RC1/2” NPTYes9-7/8″Round CapWhiteClear12
H06-6N-WW-RC3/4” NPTNo9-7/8″Round CapWhiteWhite12
H06-6N-WC-RC3/4” NPTNo9-7/8″Round CapWhiteClear12
H06V-6N-WW-RC3/4” NPTYes9-7/8″Round CapWhiteWhite12
H06V-6N-WC-RC3/4” NPTYes9-7/8″Round CapWhiteClear12

10" Standard Housings (9 3/4")


  • Compatible

  • BSP

  • NPT


Model NumberConnectionPRVFilter SizeCap DesignCap ColorSump ColorBox Qty
H05-2C-WW-FC1/4” CompatibleNo9-3/4″Flat CapWhiteWhite12
H05-2C-WC-FC1/4” CompatibleNo9-3/4″Flat CapWhiteClear12
Model NumberConnectionPRVFilter SizeCap DesignCap ColorSump ColorBox Qty
H05-4B-WW-FC1/2” BSPNo9-3/4″Flat CapWhiteWhite12
H05-4B-WC-FC1/2” BSPNo9-3/4″Flat CapWhiteClear12
H05V-4B-WW-RC1/2” BSPYes9-3/4″Round CapWhiteWhite12
H05V-4B-WC-RC1/2” BSPYes9-3/4″Round CapWhiteClear12
H05-6B-WW-RC3/4” BSPNo9-3/4″Round CapWhiteWhite12
H05-6B-WC-RC3/4” BSPNo9-3/4″Round CapWhiteClear12
H05V-6B-WW-RC3/4” BSPYes9-3/4″Round CapWhiteWhite12
H05V-6B-WC-RC3/4” BSPYes9-3/4″Round CapWhiteClear12
Model NumberConnectionPRVFilter SizeCap DesignCap ColorSump ColorBox Qty
H05-4N-WW-FC1/2” NPTNo9-3/4″Flat CapWhiteWhite12
H05-4N-WC-FC1/2” NPTNo9-3/4″Flat CapWhiteClear12
H05V-4N-WW-RC1/2” NPTYes9-3/4″Round CapWhiteWhite12
H05V-4N-WC-RC1/2” NPTYes9-3/4″Round CapWhiteClear12
H05-6N-WW-RC3/4” NPTNo9-3/4″Round CapWhiteWhite12
H05-6N-WC-RC3/4” NPTNo9-3/4″Round CapWhiteClear12
H05V-6N-WW-RC3/4” NPTYes9-3/4″Round CapWhiteWhite12
H05V-6N-WC-RC3/4” NPTYes9-3/4″Round CapWhiteClear12

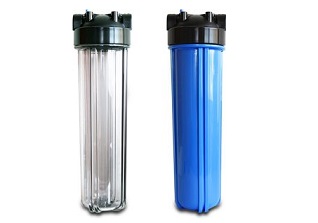

20" Standard Housings


  • Compatible

  • BSP

  • NPT


Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
H09-3C-KB3/8” CompatibleNo20″BlackBlue6
H09-3C-KC3/8” CompatibleNo20″BlackClear6
Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
H09-4B-KB1/2” BSPNo20″BlackBlue6
H09-4B-KC1/2” BSPNo20″BlackClear6
H09V-6B-KB3/4” BSPYes20″BlackBlue6
H09V-6B-KC3/4” BSPYes20″BlackClear6
Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
H09-4N-KB1/2” NPTNo20″BlackBlue6
H09-4N-KC1/2” NPTNo20″BlackClear6
H09V-6N-KB3/4” NPTYes20″BlackBlue6
H09V-6N-KC3/4” NPTYes20″BlackClear6

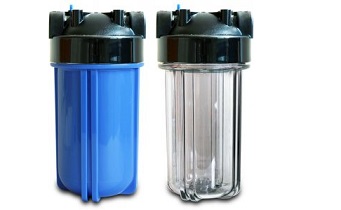

10" Jumbo Housings


  • BSP

  • NPT


Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
HP07V-6B-KB¾” BSPYes10″BlackBlue6
HP07V-6B-KC¾” BSPYes10″BlackClear6
HP07V-8B-KB1” BSPYes10″BlackBlue6
HP07V-8B-KC1” BSPYes10″BlackClear6
HP07V-12B-KB1½” BSPYes10″BlackBlue6
HP07V-12B-KC1½” BSPYes10″BlackClear6
Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
HP07V-6N-KB¾” NPTYes10″BlackBlue6
HP07V-6N-KC¾” NPTYes10″BlackClear6
HP07V-8N-KB1” NPTYes10″BlackBlue6
HP07V-8N-KC1” NPTYes10″BlackClear6
HP07V-12N-KB1½” NPTYes10″BlackBlue6
HP07V-12N-KC1½” NPTYes10″BlackClear6

20" Jumbo Housings


  • BSP

  • NPT


Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
HP08V-6B-KB3/4” BSPYes20″BlackBlue4
HP08V-6B-KC3/4” BSPYes20″BlackClear4
HP08V-8B-KB1” BSPYes20″BlackBlue4
HP08V-8B-KC1” BSPYes20″BlackClear4
HP08V-12B-KB1½” BSPYes20″BlackBlue4
HP08V-12B-KC1½” BSPYes20″BlackClear4
Model NumberConnectionPRVFilter SizeCap ColorSump ColorBox Qty
HP08V-6N-KB3/4” NPTYes20″BlackBlue4
HP08V-6N-KC3/4” NPTYes20″BlackClear4
HP08V-8N-KB1” NPTYes20″BlackBlue4
HP08V-8N-KC1” NPTYes20″BlackClear4
HP08V-12N-KB1½” NPTYes20″BlackBlue4
HP08V-12N-KC1½” NPTYes20″BlackClear4
