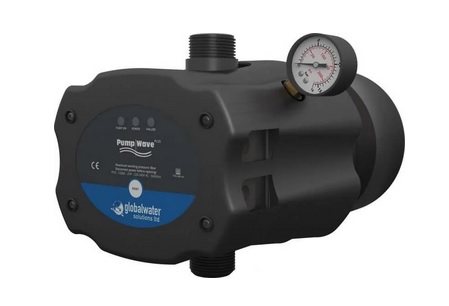

PumpWave™ Plus
PumpWave™ Plus is an electronic pump controller that helps you save electricity and extends the life of your system. Ideally suited for domestic water supply in and around the home, the PumpWave Plus offers complete automatic management of most electric pumps up to 2 HP (10A), eliminating the wear and tear caused by frequent small draw-off pump starts due to leaks and low-flow pumping applications.

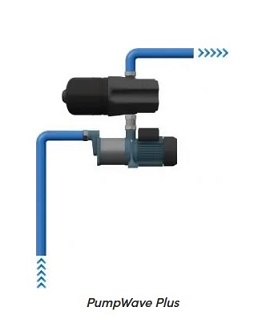

PumpWave Plus is a compact solution that is ideal for applications where space is limited. Combining a pump controller with an integrated 3L pressure tank, the PumpWave Plus is easy to install as you simply connect it to the pump and your system is ready to go. When small draw-off is detected, the PumpWave will first supply water from the integrated pressure tank. Once the adjustable start or cut-in pressure is achieved, the pump will then switch on and be allowed to run until the system reaches maximum static pressure.
The new PumpWave Plus incorporates a series of unique features and design improvements, delivering robust performance under the most challenging installation conditions.
Design-tested and verified through a comprehensive battery of hydrostatic, cycle and function testing, the PumpWave Plus is built to the highest quality standards in our own manufacturing facility, ensuring a lifetime of trouble-free operation.
Install a PumpWave Plus today. Your pump will thank you for it!
- All-in-One compact device
- Comes with integrated 3L pressure tank
- LED Indicators: Power On, Pump On/Off, Dry Run Control, Reset
- Maximum capacity of 100L/min (26.4 GPM)
PumpWave™ 2
PumpWave™ 2 controllers are ideally suited for situations where a larger supply of water is required. Using the same proven technology of the PumpWave™ Plus controller, it can be combined with a larger tank for a custom solution. PumpWave 2 controllers are ideally suited for residential water supply and provide automatic constant water pressure. The controller offers complete automatic management of most electric pumps up to 2 HP (10A), eliminating the wear and tear caused by frequent small draw-off pump starts due to leaks and low-flow pumping applications.

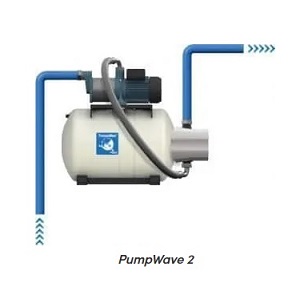

The PumpWave 2 can be installed in combination with our horizontal PressureWave tanks depending on the capacity needed. When small draw-off is detected, the PumpWave will first draw water from the pressure tank. Once the adjustable start or cut-in pressure is achieved, the pump will then switch on and run until the system reaches maximum static pressure. Design-tested and verified through a comprehensive battery of hydrostatic, cycle and function testing, the PumpWave 2 is built to the highest quality standards in our own manufacturing facility, ensuring a lifetime of trouble-free operation.
Install a PumpWave 2 today. Your pump will thank you for it!
- Compatible with horizontal PressureWave™ tanks
- LED Indicators: Power On, Pump On/Off, Dry Run Control, Reset
- Maximum capacity of 100L/min (26.4 GPM)
PumpWave™ Classic

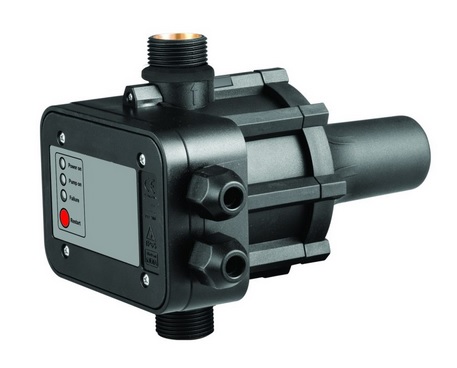

Ideal for residential applications, PumpWave™ Classic Series automatic pump controllers are designed to provide automatic constant water pressure to one to two dwellings. The completely silent, compact kits are comprised of a check valve, electronic circuit and reset button. PumpWave Classic controllers prevent pump dry running and help to eliminate water hammering. A small reservoir of water helps to avoid small draw off pumps starts caused by leaking taps. The controller will allow the pump to operate continuously if the water flowrate exceeds 1 liter per minute. When the pump reaches maximum pressure, the controller will automatically switch the pump off.
PumpWave™ Press

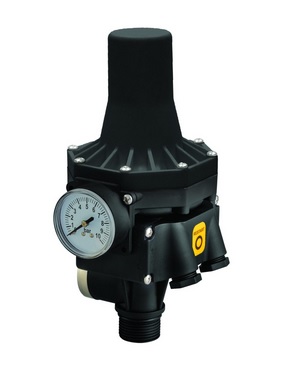

Ideal for domestic applications, PumpWave™ Press Series automatic pump controllers are designed to provide automatic constant water pressure to one to two dwellings. The controllers are completely silent. The compact kits are comprised of a check valve, electronic circuit and reset button. PumpWave Press controllers prevent pump dry running and help to eliminate water hammering. A small reservoir of water helps avoid small draw off pump starts caused by leaky plumbing and taps. The controller will let the pump operate continuously when water flowrate exceeds 1 liter per minute. When the pump reaches maximum pressure, the controller will automatically switch the pump off.
- IP65 Rated
- Maximum capacity of 57 L/min (15 GPM)
Product Certifications
CE
Europe
