Anti-Scale systems

OneStop+™


  • Prevents scale by converting limescale into harmless soft crystals
  • Retains essential minerals
  • Reduces existing limescale deposits
  • Environmentally friendly
  • No electricity or salt required
  • No regeneration or backwash required
  • Easy to install, no maintenance required
  • Increases the efficiency of boilers and other hot water appliances
  • Reduces heavy metals such as copper, lead, mercury, zinc, and cadmium

OneStop+ is suitable for residential, commercial and industrial applications and will prevent limescale buildup in:

The OneStop+ system provides protection from scale formation on internal and external plumbing surfaces. Additionaly, it reduces heavy metals such as copper, lead, mercury, zinc and cadmium. It can be installed at the point of entry to a building to treat both hot and cold water, or it can be located directly before a water heater, boiler, or other water using device that requires protection from hard water.


OneStop+ prevents scale by transforming the normal dissolved hardness minerals into undissolved crystal microparticles. These crystals stay suspended in the water and have a greatly reduced ability to react and attach to surfaces like dissolved hardness does. Therefore the problem of internal build-up of scale in pipes, water heaters, boilers, espresso and coffee machines, fixtures and glass is greatly reduced.


OneStop+ is not a water softener – water treatment chemistry “e.g. antiscalants, sequestrants, etc.” will most likely have to be changed to be compatible with OneStop+ treated water. Laundry and dishwashing chemistry will likewise require adjustments.

Features & Benefits


Retains Essential Minerals

  • Converts limescale into harmless crystals
  • Reduces existing limescale deposits
  • Prevents limescale deposits without the use of chemicals, electricity or salt
  • For drinking water

Environmentally Friendly

  • No water waste from backwashing
  • No regeneration
  • No salt required
  • Increase the efficiency of boilers and all other equipment in contact with the treated water

Reduces Heavy Metals

  • Reduces copper, lead, mercury, zinc and cadmium levels
  • Long Life Cartridge
  • Will work on most municipal water supplies, see water chemistry limitations
  • For drinking water

OneStop+ Working Principle

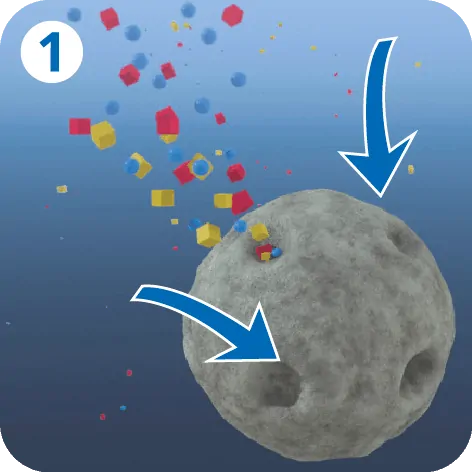

The OneStop+ media attracts dissolved calcium carbonate (CaCO3) and magnesium carbonate (MgCO3) scale molecules into “Templates” on the media.

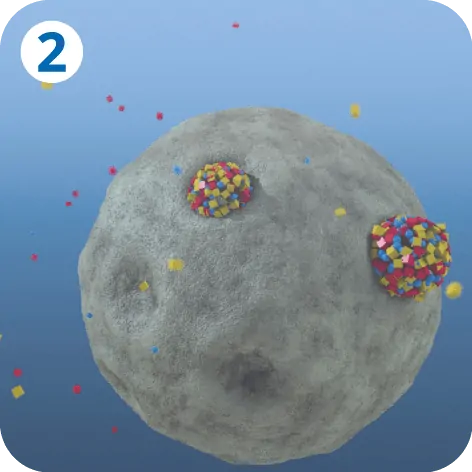

The calcium carbonate (CaCO3) and magnesium carbonate (MgCO3) ) scale molecules grow into microscopic crystals.

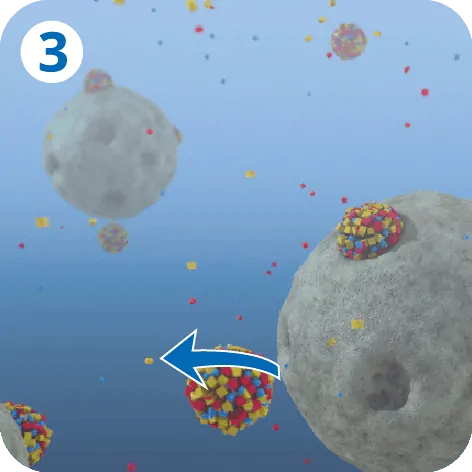

The crystals detach when they are too large to be held by the OneStop+ media. These harmless crystals effectively isolate the calcium carbonate (CaCO3) and magnesium carbonate (MgCO3) scale molecules from the water and anything the water comes in contact with.

Downloads


Leaflet - OneStop+ - English  Download

Leaflet - OneStop+ - Italian  Download

Leaflet - OneStop+ - Spanish  Download

Leaflet - OneStop+ - German  Download

Leaflet - OneStop+ - Portuguese  Download

Leaflet - OneStop+ - French  Download

OSP 1465 & 1665 Installation & Operation Manual  Download

OSP 1024, 1054 & 1252 Installation & Operation Manual - Spanish  Download

OSP 1465 & 1665 Installation & Operation Manual - Spanish  Download

OSP 10" & 20" Installation & Operation Manual  Download

OSP 1024, 1054 & 1252 Installation & Operation Manual  Download

Products


  • Small Housings

  • Replacement Cartridges

  • Media Tanks

Model NumberConnectionContinous FlowratePeak FlowrateCartridge LifetimeMax. Inlet Water TemperatureBox Qty
OSP-10SB¾” BSP3L/min 0.8 gal/min5L/min 1.3 gal/min18-24 months*40°C / 104°F12
OSP-10SN¾” NPT3L/min 0.8 gal/min5L/min 1.3 gal/min18-24 months*40°C / 104°F12
OSP-10JB¾” BSP8L/min 2.1 gal/min12L/min 3.2 gal/min18-24 months*40°C / 104°F12
OSP-10JN¾” NPT8L/min 2.1 gal/min12L/min 3.2 gal/min18-24 months*40°C / 104°F12
OSP-20JB¾” BSP15L/min 4.0 gal/min22L/min 5.8 gal/min18-24 months*40°C / 104°F12
OSP-20JN¾” NPT15L/min 4.0 gal/min22L/min 5.8 gal/min18-24 months*40°C / 104°F12
*Depending on water quality
Model NumberReplacement ForContinous FlowratePeak FlowrateCartridge LifetimeMax. Inlet
Water Temperature
Box Qty
OSP-10SROSP-10SB
OSP-10SN
3L/min
0.8 gal/min
5L/min
1.3 gal/min
18-24 months*40°C / 104°F10
OSP-10JROSP-10JB
OSP-10JN
8L/min
2.1 gal/min
12L/min
3.2 gal/min
18-24 months*40°C / 104°F4
OSP-20JROSP-20JB
OSP-20JN
15L/min
4.0 gal/min
22L/min
5.8 gal/min
18-24 months*40°C / 104°F2
*Depending on water quality
Model NumberConnectionContinous FlowrateCartridge LifetimeMax. Inlet Water TemperatureReplacement OSP Media (L)
OSP-1024B OSP-1024N1″ BSPP / NPT50L/min 13 gal/min24-36 months*40°C / 104°F3.5
OSP-1054B OSP-1054N1″ BSPP / NPT76L/min 20 gal/min24-36 months*40°C / 104°F5.0
OSP-1252B OSP-1252N1″ BSPP / NPT114L/min 30 gal/min24-36 months*40°C / 104°F7.5
OSP-14652″ PVC Socket189L/min 50 gal/min24-36 months*40°C / 104°F12.5
OSP-16652″ PVC Socket303L/min 80 gal/min24-36 months*40°C / 104°F20.0
*Depending on water quality
  • Water Chemistry Limits

pH range6.5 ~ 8.5
Maximum hardness1300 ppm
Chlorine, Max.3 ppm
Ferrous Iron, Max.0.3 ppm
Manganese, Max.0.05 ppm
Calcium Sulphate (CaSO4)>300 ppm, Treat before OneStop+
Oil and PolyphosphatesTreat before OneStop+
Hydrogen SulfideTreat before OneStop+
Phosphate (PO4)<0.3 ppm: Activated Carbon Prefiltration Recommended
0.3 ppm: Activated Carbon Prefiltration Required
