Long lasting, easy to install borehole riser pipe

ProLine™ Series

Threaded column pipe available in standard, medium, heavy and super heavy variants and different diameters to suit a wide range of installations.
1" to 2" pipes available in 3m / 10 ft lengths.
2.5" pipes and up available in 3m / 10 ft lengths or 6m / 20 ft.

The ProLine™ Series is an advanced continuous flow Reverse Osmosis system ideally suited for residential and commercial applications.

A high quality and unique alternative for conventional steel pipes, ProLine™ series pipes are high-tensile, high-impact uPVC threaded pipe – commonly known as riser pipes or column pipes for submersible pumps.

ProLine riser pipes are an excellent alternative to galvanized or stainless steel pipes as they are 100% corrosion resistant and bacteria free. Featuring 100% leak-proof and water tight joints, the ProLine series is the ideal solution for bore well and deep submersible pump delivery. Installed between the pump at the bottom of a well and the surface, ProLine pipes can be assembled easily without the need for sophisticated installation tools.

ProLine riser pipes are differentiated from other pipes on the market due to the use of the exclusive screw-locking system design. The screw-lock prevents the opening of pipe joints and works as an additional safety feature. Additional sealing within the coupling is accomplished through our industry leading permanent locking through freezing technology, which prevents leakage, controls vibration and helps avoid over tightening.

Lightweight but not compromising on strength, the ProLine features bi-axial orientation, increased wall thickness and is perfectly aligned resulting in stronger, stress free pipe.

Column Pipes That Are Made To Last

ProLine pipes are produced using a proprietary uPVC (unplasticized polyvinyl chloride) formulation. The formulation ensures that the pipes have high tensile and impact strength. These properties make the riser pipes capable of handling both the internal hydrostatic pressure and the huge vertical tensile load resulting from the water column and pump weight. It also ensures the threads do not become brittle or get chipped even after repeated loosening and/or tightening during their lifetime.

ProLine riser pipe formulation provides dual function protection:

On one hand, ProLine pipes have to withstand the hydrostatic pressure of the pump delivery. This pressure is generally highest in the first pipe connected to the pump and can run as high as 35 kg/cm2. On the other hand, the top most pipe has to bear the entire load of the column filled with water along with the weight of the pump. Depending on well depth, the total load weight may reach up to 2 tons or more. The ability to handle this dual load is a unique feature and requires special manufacturing techniques.

Bi-Axial Orientation

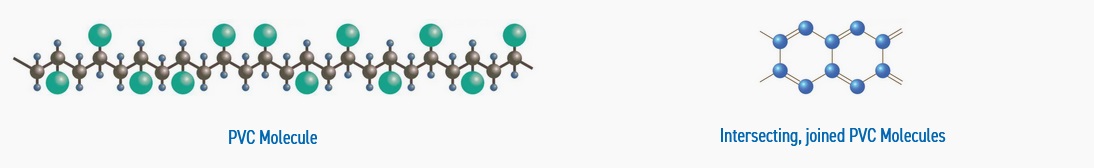

To make the ProLine pipes as strong as possible, the molecules are orientated in two axes during the extrusion of the pipes by simultaneously extruding and rotating.

The molecules then intersect, creating additional bonds between them. The realignment of the PVC strands increases the drop and notch impact resistance as well as the overall strength of the pipes.

Product Certifications

CE

Europe

Products

Product Code	Type	No. of pipes/ pack	Ultimate Breaking Load [kg]	Pulling Load with Chain Pulley or Crane [kg]	Allowable Hydraullic Pressure [kg/cm²]	Total Shut Off Head of The Pump [m]	Net Weight per 3m Section [kg]	Recommended Installation
Product Code	Type	No. of pipes/ pack	Ultimate Breaking Load [kg]	Pulling Load with Chain Pulley or Crane [kg]	Allowable Hydraullic Pressure [kg/cm²]	Total Shut Off Head of The Pump [m]	Net Weight per 3m Section [kg]	Depth of Pipes [m]	Depth of Pipes [ft]	Approx. Weight of Pipes at Depth [kg] (A)	Weight of Water at Depth [kg] (B)	Weight of Pump & Motor at Depth [kg] (C)	Total Weight at Depth [kg] (A+B+C)
Nominal Size: 1” / 25 mm, Outer Diameter: 33mm
uPVC-MED-1.00	Medium	25	1500	800	21	210	1.3	147	482	64	72	42	178
uPVC-STD-1.00	Standard	25	2200	1250	27	270	1.7	189	620	103	93	45	241
Nominal Size 1 ¼” / 32 mm, Outer Diameter: 42mm
uPVC-MED-1.25	Medium	25	1800	1150	21	210	1.9	147	482	95	118	40	253
uPVC-STD-1.25	Standard	25	2650	1400	27	270	2.1	189	620	135	152	60	347
uPVC-HVY-1.25	Heavy	25	3100	1800	35	350	2.8	245	804	230	197	84	511
Nominal Size 1½"” / 40 mm, Outer Diameter: 48mm
uPVC-MED-1.50	Medium	20	2300	1200	21	210	2.3	147	482	113	185	60	358
uPVC-STD-1.50	Standard	20	3200	1700	27	270	2.6	189	620	165	237	75	477
uPVC-HVY-1.50	Heavy	20	4200	2200	35	350	3.5	245	804	285	308	86	679
Nominal Size 2” / 50 mm, Outer Diameter: 60mm
uPVC-MED-2.00	Medium	10	3040	2000	18	180	2.7	126	413	113	247	80	440
uPVC-STD-2.00	Standard	10	5098	2700	21	210	3.9	147	482	191	288	110	589
uPVC-HVY-2.00	Heavy	10	5682	3200	27	270	4.6	189	620	290	371	128	789
uPVC-SHVY-2.00	Super Heavy	10	6200	3600	35	350	5.5	245	804	449	481	145	1075
Nominal Size 2½” / 65 mm, Outer Diameter: 75mm
uPVC-MED-2.50	Medium	10	4496	2800	15	150	3.9	105	344	138	348	98	584
uPVC-STD-2.50	Standard	10	5934	3600	18	180	4.8	126	413	200	418	125	743
uPVC-HVY-2.50	Heavy	10	7432	4200	27	270	6.1	189	620	386	627	180	1193
uPVC-SHVY-2.50	Super Heavy	10	9194	5300	35	350	7.8	245	804	636	812	203	1651
Nominal Size 3” / 80 mm, Outer Diameter: 88mm
uPVC-MED-3.00	Medium	5	5934	4000	11	110	4.9	77	253	126	349	120	595
uPVC-STD-3.00	Standard	5	9112	5010	18	180	6.6	126	413	277	572	220	1069
uPVC-HVY-3.00	Heavy	5	10000	6000	27	270	8.7	189	620	548	857	380	1785
uPVC-SHVY-3.00	Super Heavy	5	12000	7250	35	350	10.6	245	804	870	1111	418	2399
Nominal Size 4” / 100 mm, Outer Diameter: 113mm
uPVC-MED-4.00	Medium	5	11402	4500	10	100	7.6	70	230	175	549	181	905
uPVC-STD-4.00	Standard	5	12150	7250	16	160	9.8	112	367	363	879	326	1568
uPVC-HVY-4.00	Heavy	5	15980	5950	27	270	14.5	189	620	910	1484	441	2835
uPVC-SHVY-4.00	Super Heavy	5	19500	12000	35	350	16.5	245	804	1349	1924	455	3728
Nominal Size 5” / 125 mm, Outer Diameter: 140mm
uPVC-MED-5.00	Medium	3	12000	7540	10	100	13.3	70	230	305	859	176	1340
uPVC-STD-5.00	Standard	3	16000	10100	16	160	16.2	112	367	598	1374	377	2349
uPVC-HVY-5.00	Heavy	3	23860	15100	27	270	18.9	189	620	1191	2319	465	3975
uPVC-SHVY-5.00	Super Heavy	3	30000	18000	35	350	24.5	245	804	2009	3006	478	5493
Nominal Size 6” / 150 mm, Outer Diameter: 165mm
uPVC-HVY-6.00	Heavy	3	22500	12550	16	160	30.0	112	367	1110	1979	650	3739
uPVC-SHVY-6.00	Super Heavy	3	40000	23500	27	270	35.0	189	620	2520	3340	980	6840

Note: Minor dimensional variations may occur.
Total Pipe Length: 3000mm or 6000mm (2" and up)
Max. Working Temperature: 48°C / 118°F
