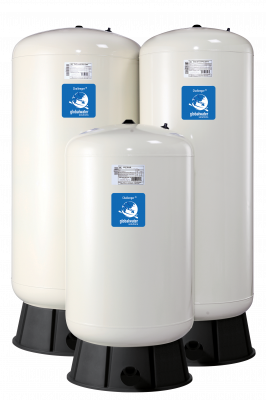

Maintenance-Free Pressure Tanks
Challenger™ Series
- 60 - 450 L / 15.8 - 118.9 gal
- Max operating pressure GCB Models: 10 bar | 150 psi GCN Models: 8.6 bar | 125 psi
- Patented CAD-2 diaphragm technology
- Stainless steel water connection
- Two-part polyurethane, epoxy primed paint fi nish
Challenger™ tanks are ideally suited for a wide range of applications including:
- Booster systems
- Well systems
- Irrigation systems
- Thermal expansion
- Hydronic heating expansion
- Hydraulic hammer arresting
- Clean water backwash for ultra-filtration systems
Efficient and cost effective, Challenger tanks are designed with a patented controlled action CAD-2 diaphragm assembly. It features a chlorine resistant 100% butyl diaphragm with a precision molded copolymer polypropylene liner for superior air and water separation.
Constructed with an FDA compliant high-grade butyl, the diaphragm assembly seals water in a true non-corrosive chamber. The air chamber is sealed with a fixed O-ring and closed cell foam and will provide many years of leak free and service free life.
