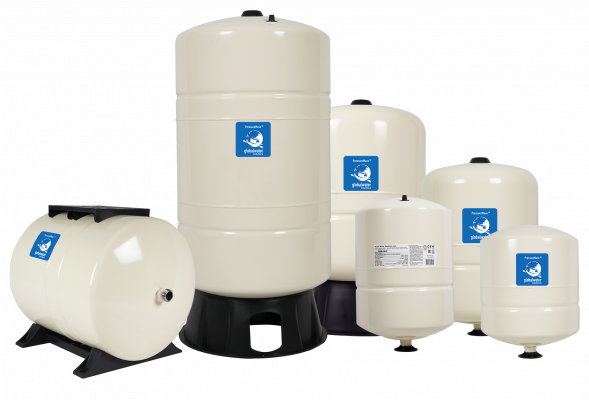

Multi-purpose, maintenance-free pressure tanks

PressureWave™ Series


  • Capacity: 2 - 150 liter / 0.5 - 40 gallon
  • Maximum working pressure: 10 bar / 150 psi
  • Factory pre-charge: 1.9 bar / 28 psi
  • Maximum operating temperature: 90° C / 194° F

PressureWave™ tanks are superior quality, versatile pressure vessels suitable for a range of applications including:


  • Booster systems
  • Well systems
  • Irrigation systems
  • Thermal expansion
  • Hydronic heating expansion
  • Hydraulic hammer arresting

PressureWave™ tanks undergo rigorous testing and inspection throughout the production process to ensure optimum structural integrity and to ensure they meet the highest standard in terms of performance and material certifications. They are manufactured in an ISO 9001:2015 certified facility.


PressureWave™ tanks are the number one selling tanks in the industry and are the top choice for the world’s leading pump manufacturers and distributors.

Features & Benefits


  • Maintenance-free
  • Diaphragm design
  • Patented stainless steel water connection
  • Virgin polypropylene liner
  • Dual layer polyurethane paint finish
  • Leak-free, O-ring sealed air valve cap
  • Replaceable tank base / tank feet / pump stand

Product Certifications


CE

Europe

KC

South Korea

EAC

Russia

WQA

USA

ACS

France

WRAS

United Kingdom

Water Mark

Australia

Downloads


PressureWave - EN  Download
E-Wave - EN  Download
PressureWave - DE  Download
E-Wave - DE  Download
PressureWave - ES  Download
E-Wave - ES  Download
PressureWave - FR  Download
PressureWave - IT  Download
E-Wave - IT  Download

Products


  • Inline

  • Horizontal

  • Vertical

Model Number Connection Nominal Volume Dimensions (mm) Gross Weight [kg]
BSP NPT Liters Gallons A B C
PWB-2LX *PWN-2LX *1” BSPT / 1” NPT20.520812613.8
PWB-3LX **PWN-3LX **1” BSPT / 1” NPT30.82431439.1
PWB-4LXPWN-4LX1” BSPT / 1” NPT41.12611621.8
PWB-6LX ***PWN-6LX ***1” BSPT / 1” NPT61.62901788.1
PWB-8LXPWN-8LX1” BSPT / 1” NPT82.13142022.5
PWB-12LXPWN-12LX1” BSPT / 1” NPT123.23672303.3
PWB-18LXPWN-18LX1” BSPT / 1” NPT184.83672794.2
PWB-24LXPWN-24LX1” BSPT / 1” NPT246.34472905.6
PWB-35LXPWN-35LX1” BSPT / 1” NPT359.24833187.4
Model Number Connection Nominal Volume Dimensions (mm) Gross Weight [kg]
BSP NPT Liters Gallons A B C
PWB-8LHPWN-8LH1” BSPT / 1” NPT82.13122311152.9
PWB-12LHPWN-12LH1” BSPT / 1” NPT123.23762601333.6
PWB-20LHPWN-20LH1” BSPT / 1” NPT205.34472921455.1
PWB-24LHPWN-24LH1” BSPT / 1” NPT246.34473211616.1
PWB-35LHPWN-35LH1” BSPT / 1” NPT359.24813531798.0
PWB-60LHPWN-60LH1” BSPT / 1” NPT6015.853042321411.7
PWB-80LHPWN-80LH1” BSPT / 1” NPT8021.172642421416.5
PWB-100LHPWN-100LH1” BSPT / 1” NPT10026.472047524520.2
Model Number Connection Nominal Volume Dimensions (mm) Gross Weight [kg]
BSP NPT Liters Gallons A B C
PWB-35LVPWN-35LV1” BSPP / 1” NPT359.2556318657.9
PWB-60LVPWN-60LV1” BSPP / 1” NPT6015.86193896311.5
PWB-80LVPWN-80LV1” BSPP / 1” NPT8021.58153896316.6
PWB-100LVPWN-100LV1” BSPP / 1” NPT10026.48054305920.1
PWB-130LVPWN-130LV1” BSPP / 1” NPT13034.310734306027.2
PWB-150LVPWN-150LV1” BSPP / 1” NPT15039.69385306635.3
Note: Minor dimensional variations may occur
